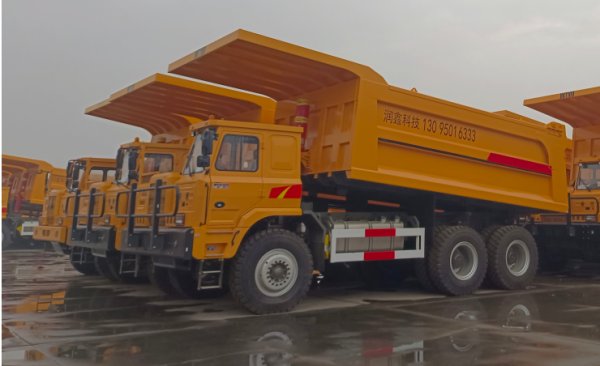

HOWO 530hp YR105 Off-road Mine Mining Truck

  • Year 2024
  • Engine 530HP
  • Trans. Manual
  • Location CHINA
Ref. No. VC1112038022
Steering Left
Engine Size 530HP Ext. Color Yellow
Location CHINA Fuel Diesel
Version/Class Off-road Mine Mining Truck Seats 1
Doors 1
Transmission Manual
Manufacture
Year/month		 June 2024
Max.Cap 530HP

Features

  • CD Player
  • Sun Roof
  • Leather Seat
  • Alloy Wheels
  • Power Steering
  • Power Window
  • A/C
  • ABS
  • Airbag
  • Radio
  • CD Changer
  • DVD
  • TV
  • Power Seat
  • Back Tire
  • Grill Guard
  • Rear Spoiler
  • Central Locking
  • Jack
  • Spare Tire
  • Wheel Spanner
  • Fog Lights
  • Back Camera
  • Push Start
  • Keyless Entry
  • ESC
  • 360 Degree Camera
  • Body Kit
  • Side Airbag
  • Power Mirror
  • Side Skirts
  • Front Lip Spoiler
  • Navigation
  • Turbo
  • Full Options

Description

Cab form Skeleton-skin type reinforced special cab
air intake system model Skeleton-skin type reinforced special cab

Size parameters
Overall vehicle dimensions (mm) 9500×3660×4300
Wheelbase (mm) 3950+1750
Wheelbase (front/rear) mm 2760/2635
Minimum ground clearance mm 380

Weight
Vehicle curb weight (kg) 37400
Axle load mass distribution (kg) 11400/13000/13000
Maximum total mass (kg) 110000
Axle load mass distribution (kg) 28000/41000/41000

Performance parameters
Maximum speed (km/h) 40
Maximum grade(%) 30
Parking brake gradient (%) >15
Minimum turning diameter (m) Twenty Four
Fuel tank volume (L) 600

Engine
model WP13G530E310
Total displacement (L) 12.54
Rated power kW/(r/min) 395/1900
Maximum torque Nm/(r/min) 2500/1050~1500

Clutch
Form Pull type diaphragm spring clutch
form of manipulation Hydraulic control air assist

Gear box
model 8DS240A
speed ratio 8.15, 6.01, 4.11, 3.05, 2.12, 1.45, 1, 0.71

Front axle model HDZ25T
Middle and rear axles model HDZ40T 16.641

Frame
Type Equal-width ladder frame
Main longitudinal beam section (mm) Groove type 380X120X10 (12 oil and gas suspension)
Sub-longitudinal beam section (mm) Groove type 356X120X10 (12 oil and gas suspension)

suspension
Forward Semi-elliptical leaf spring with cylinder shock absorber/oil and gas spring
back Overall balanced suspension 32mm×14 (main 4) 120mm wide,

wheel
rim 11.25/2.0-25
Tire model 16.00R25
Air pressure (bar) 1100±11

steering system Steering gear type Fully hydraulic steering gear

Braking System
service brake Dual circuit air pressure brake
Parking brake Spring energy storage air brake
Auxiliary braking engine exhaust brake

Upper body
Rectangle (inner cavity) (mm) 6400*3400*1850
Volume (square) 40 (paperback)
Board thickness (bottom, side, back door) Bottom 16 Side 12 Back 14
plate Bottom K450 Side H850 Front H850 Rear K450
